Foldable x1 Features
20x4.0" ChaoYang Fat Tire
Special tires for outdoor use, anti-puncture and anti-flat tires, alleviating vibrations between the tires and the ground during high-speed driving for enhanced comfort.

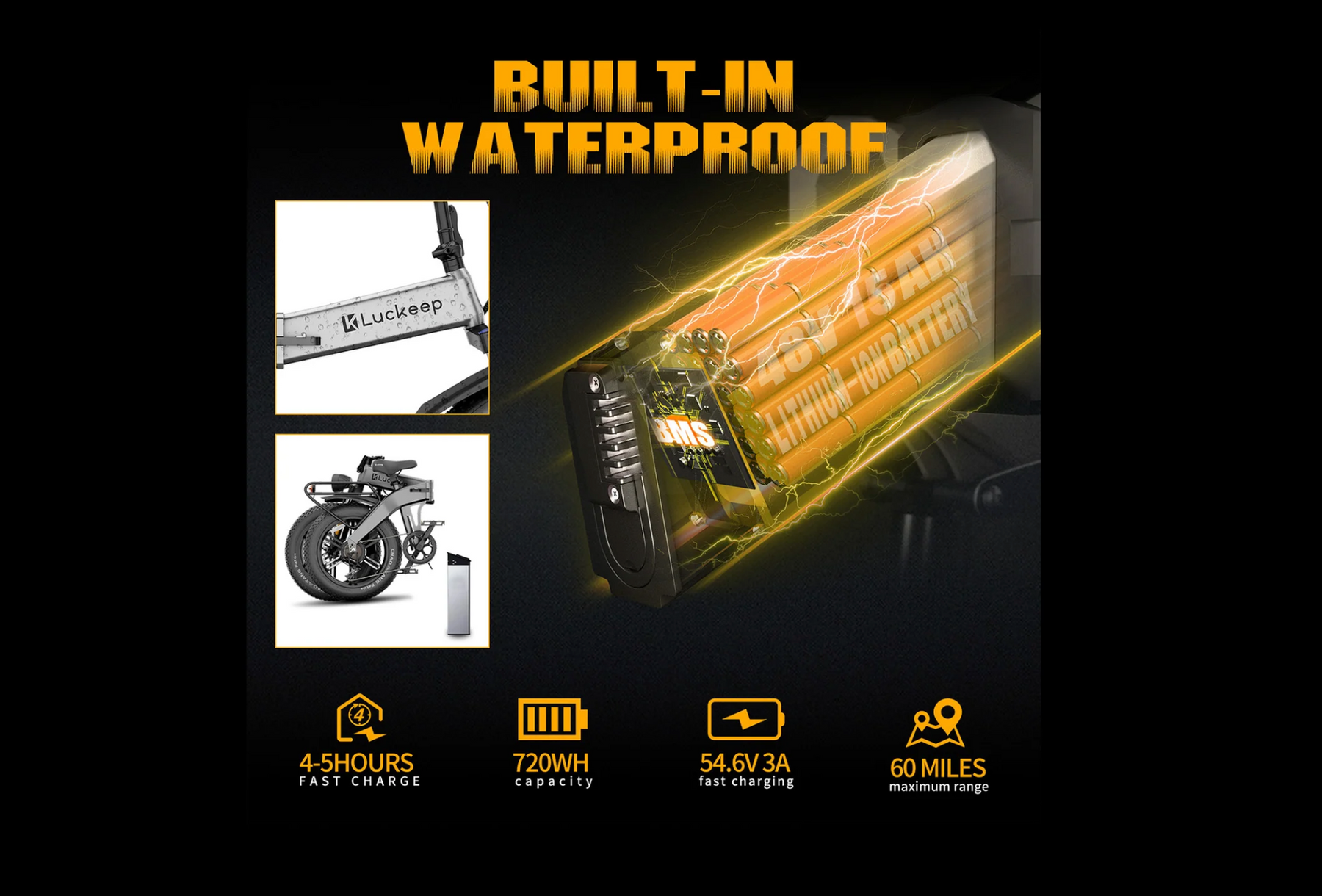

Removable Lithium-ion Battery
The X1 ebike features a Safety Certified Battery (UL2849 Standard) with a capacity of 720Wh. It only takes 4 hours to fully charge the battery
3.5" IPS Full Color Display
Track your battery life, distance traveled, pedal assist level, and more at a quick glance with the IPS Display. Charge your smartphone via its concealed USB
Front Suspension
The enhanced front suspension effortlessly absorbs every bump, ensuring a stable and exhilarating ride on any terrai

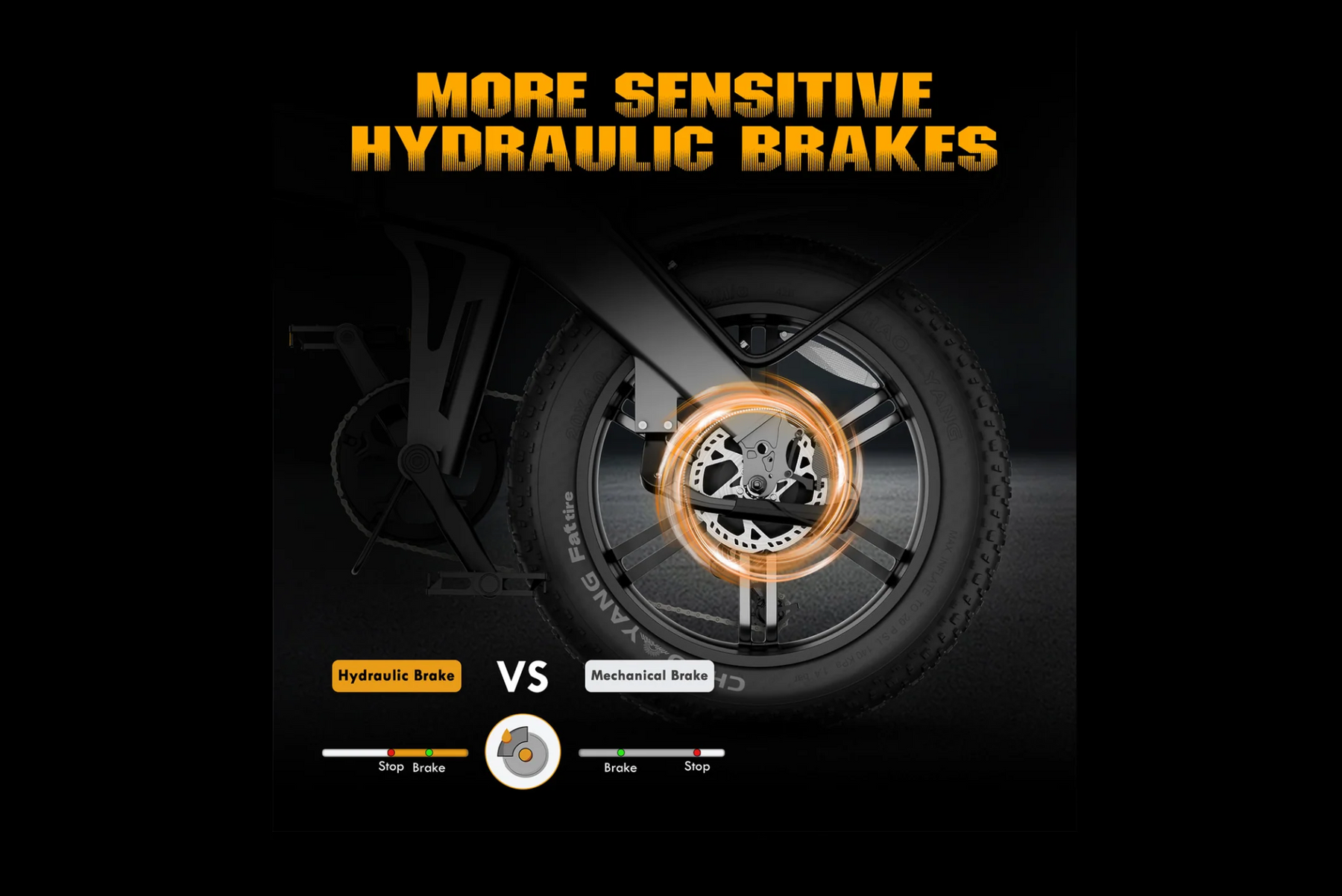

Hydraulic Disc Brakes
F&R Hydraulic Disc Brakes,160mm Rotors, Shorten stopping distances by an average of 50% over mechanical brakes, providing a safer ride in all weather conditions.
Shimano 7-Speed
Our thumb throttle provides smooth and precise control over your electric bike's power output. Effortlessly accelerate and maintain your desired speed with a simple push of your thumb

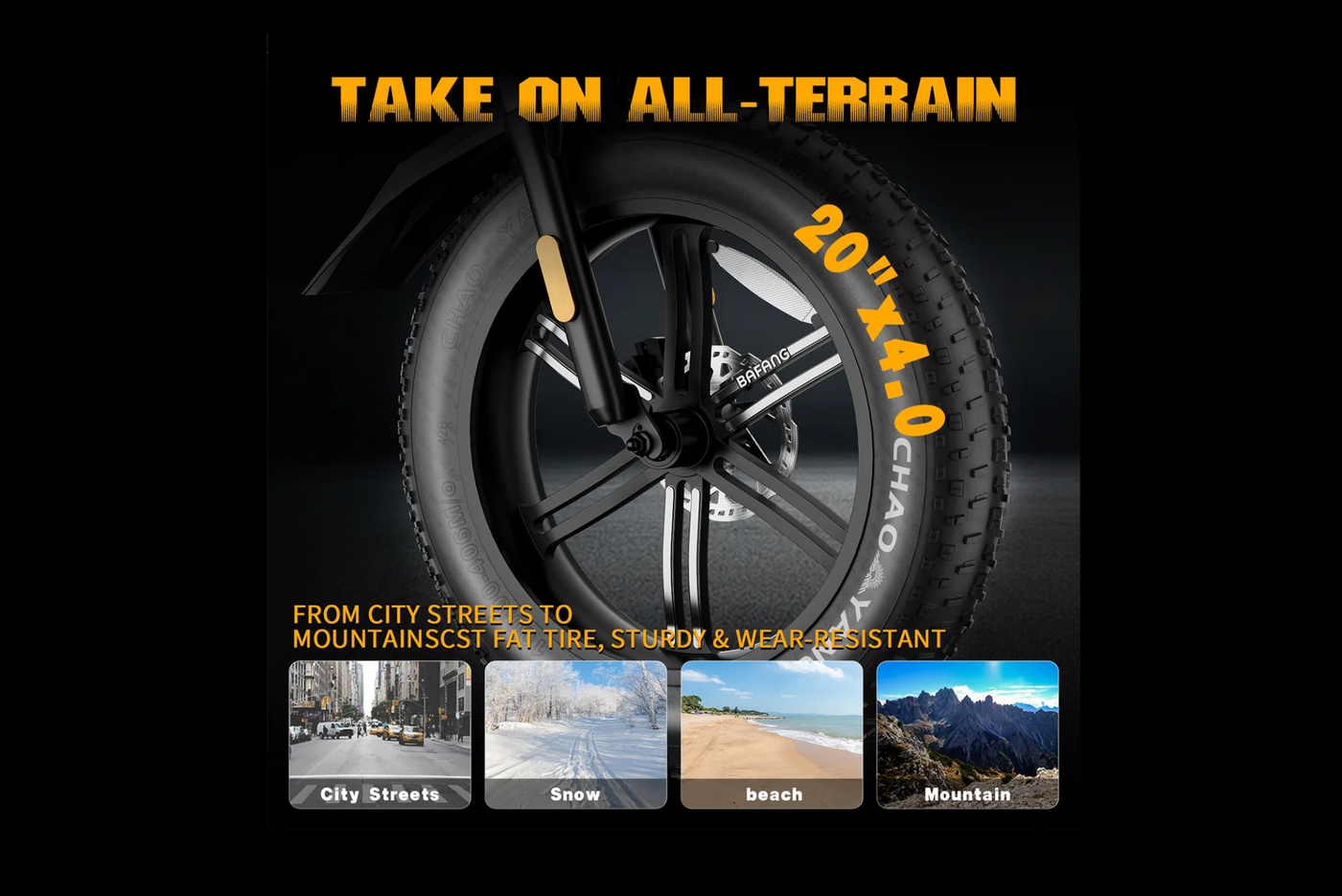

20x4.0" ChaoYang Fat Tire
Special tires for outdoor use, anti-puncture and anti-flat tires, alleviating vibrations between the tires and the ground during high-speed driving for enhanced comfort.
Adjustable Turn Signals
Foldable X1 feature a bright 200 lumen headlight for safer night riding and rear-facing turn signals that let cars, pedestrians, and fellow cyclists know your next move.
LED Headlight
Comply with CE certification, ISO standard, waterproof IP6, light brightness 70LUX. This headlight offers double the brightness, casting a powerful beam that cuts through darkness.

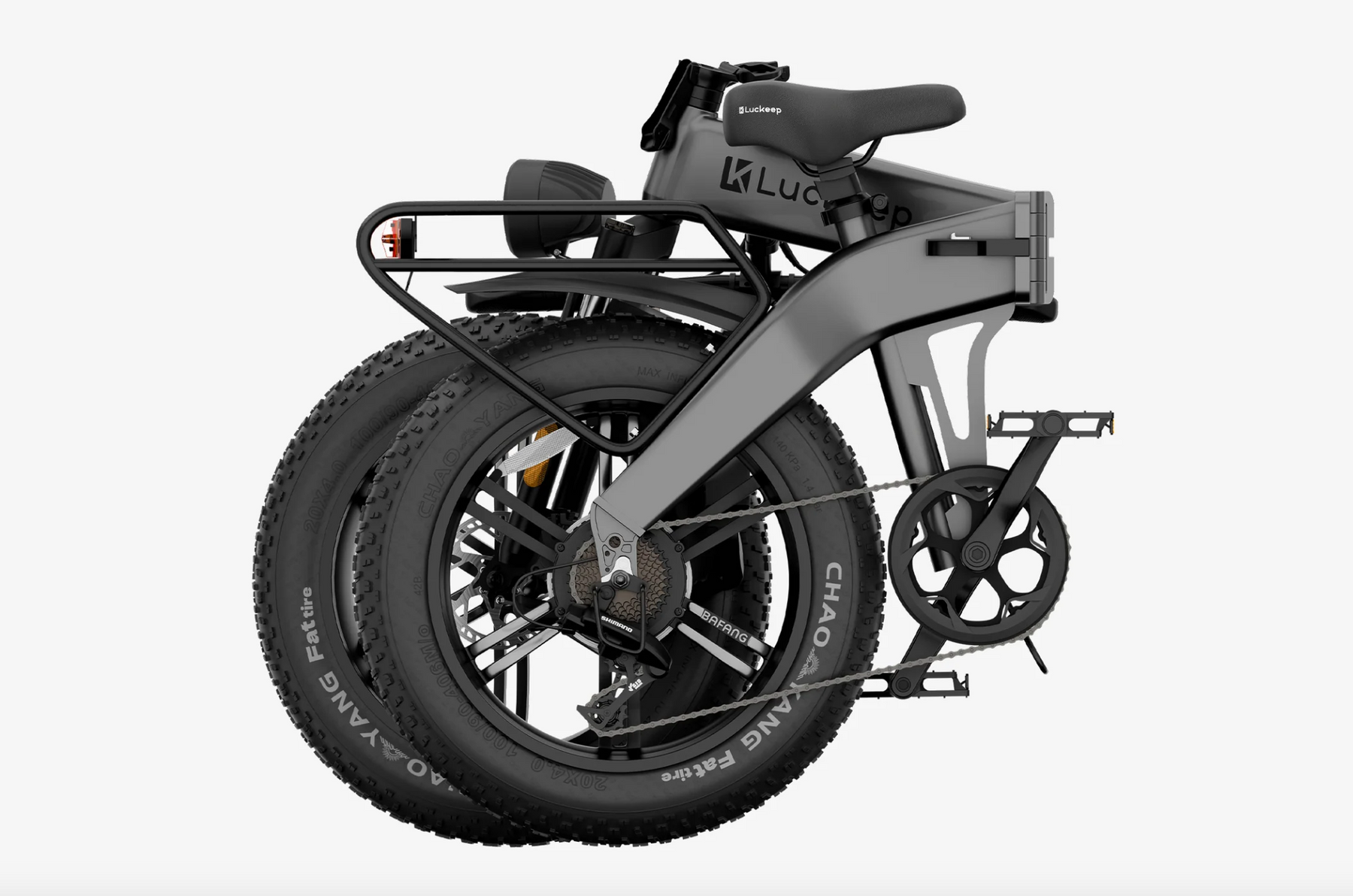

Easy Storage and Transport.
X1 takes pride in its cutting-edgequick multi-stage disassembly design. With no need for cumbersome tools, just a few simple steps allow for the rapid disassembly of various components, ensuring easy portability and storage.
Carry More, Enjoy More.
The rear rack can load up to 120 Ibs. With pedboards on both sides, you can easily attach various things like water bottle, bike lock and so on.
Extend beyond the horizon.
Under the assistance of level 5 pedal assist, it provides 80 Nm of torque in just 2 seconds. The motor, a result of Luckeep’s collaboration with Bafang, utilizes a brushless gear structure, with a peak power of up to 1400W. It enables effortless control over riding speeds from 1 to 5 gears, offering a customizable and intuitive riding experience.
Fearlessly fun.
With 20-inch x 4-inch fat tires, sturdy frame design, and adjustable front suspension fork, it's like a reassuring cruiser that allows you to navigate any terrain with ease.
Technical Specifications

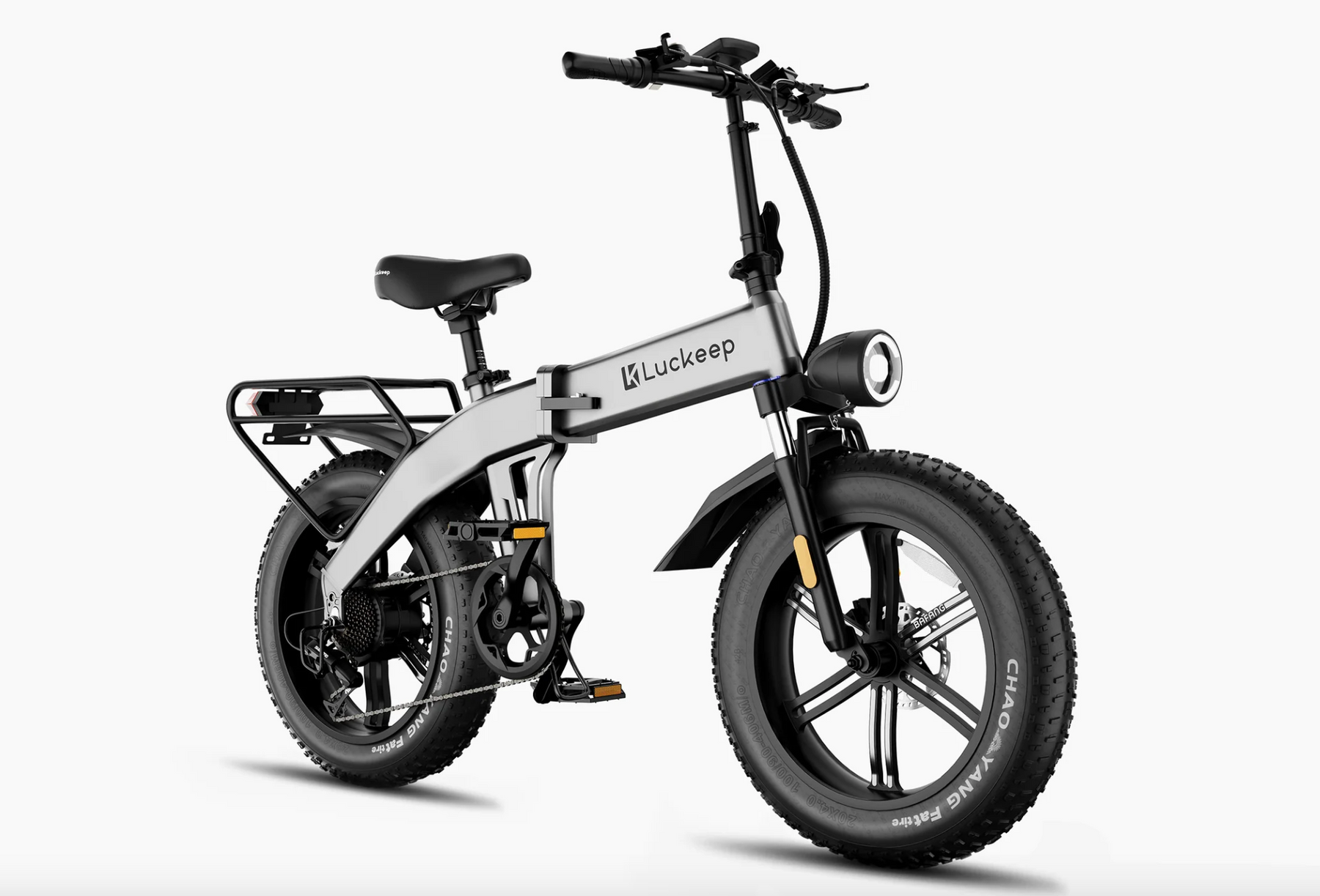

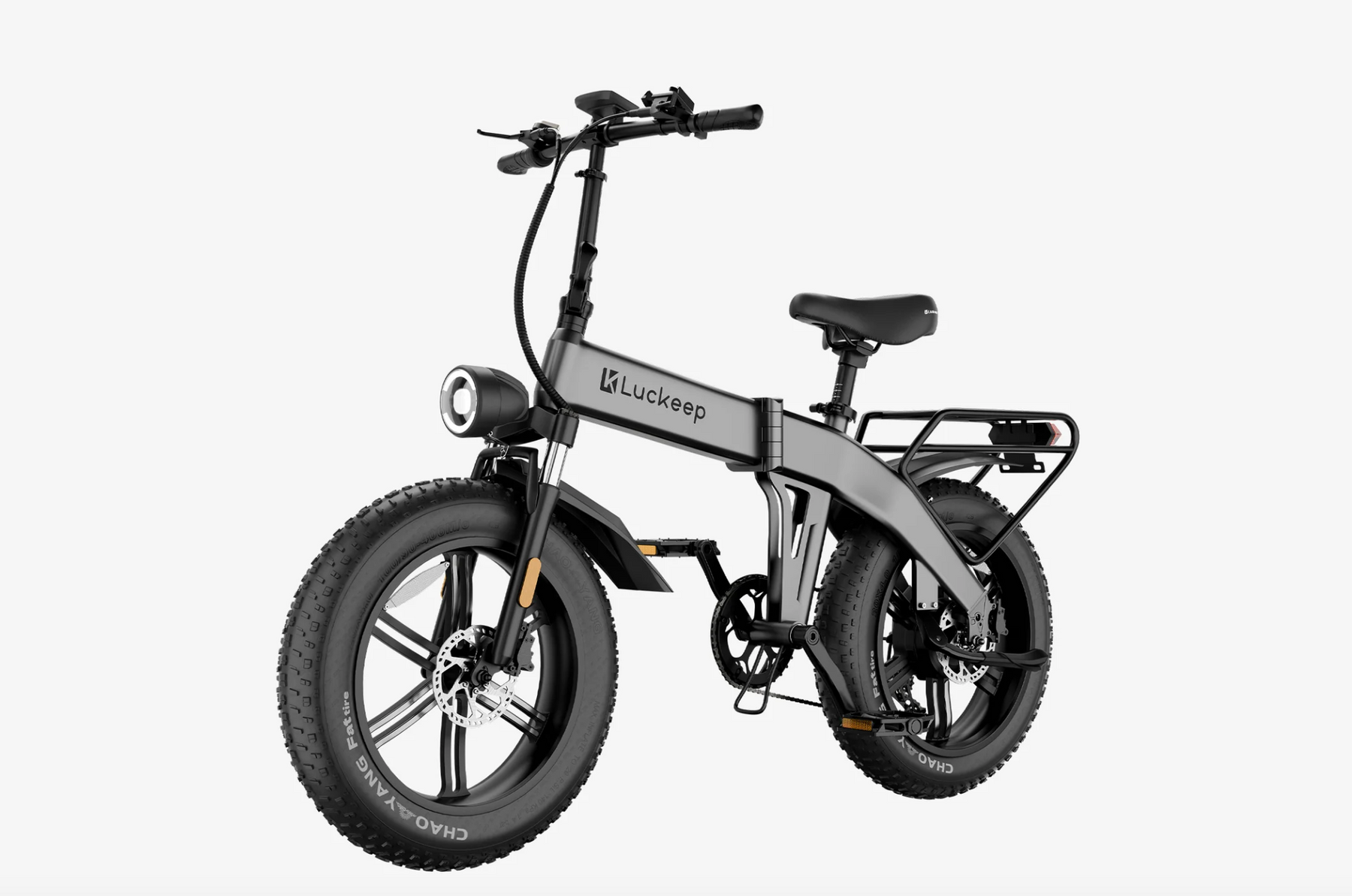

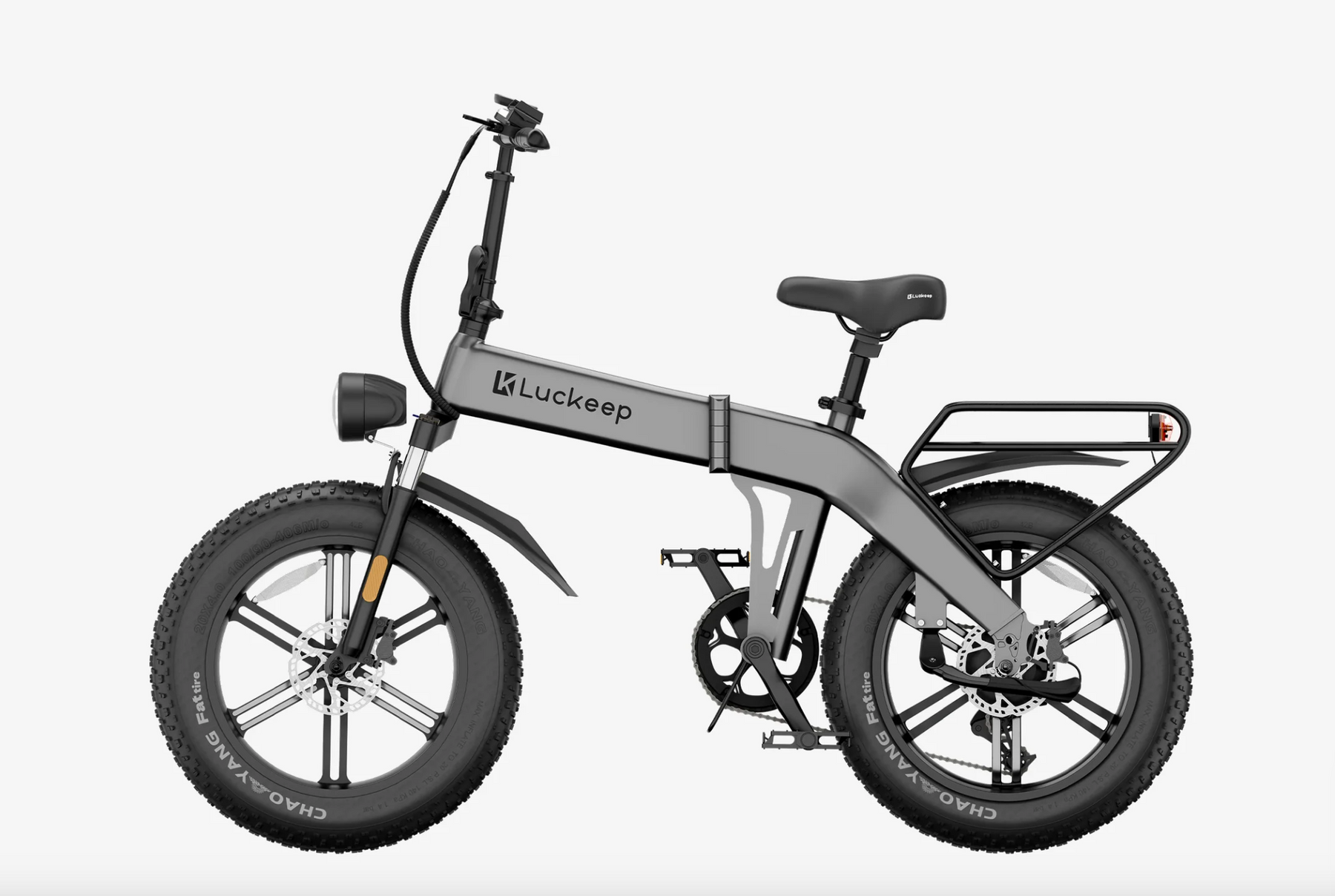

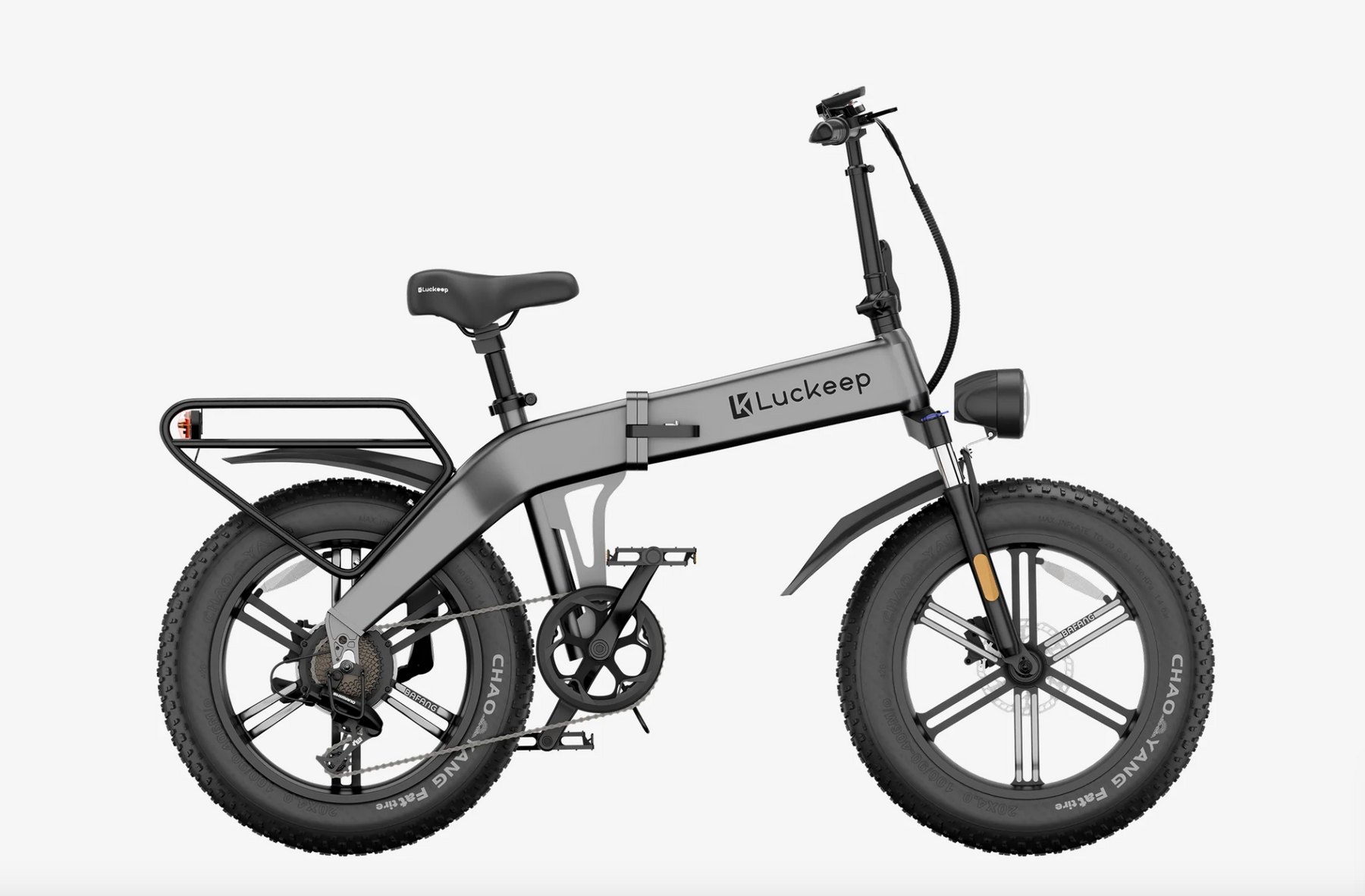

Model: Foldable X1 Ebike
Ideal Use: All-terrain
Range: 40 miles (throttle mode), 60 miles (pedal assist mode)
Speed: Up to 28 MPH (throttle), (Contact customer service for speeds up to 32 MPH)
Weight: 76 lbs (battery included)
Total Weight Limit: 330 lbs
Folding: Yes
Rider Height: 5'4" - 6'4"
Pedal Assist: 5 levels
Frameset
Frame: 6061 Aluminum Alloy
Fork: Suspension Fork with 80mm travel, with lockout
Frame Style: Step-Over
Wheelset
Rim: Aluminum Alloy
Spokes: Aluminum Alloy
Tubes: Butyl Rubber, Schrader Valve
Tires: 20x4.0" ChaoYang Puncture Resistant Magnesium Alloy Fat Tire
Ebike System
Throttle: Twist Throttle with Cruise Control
Motor: 1400W (peak), 750W (sustained), 48V BAFANG Brushless Rear Hub Motor with 85Nm
Display: 3.5" IPS Display Integrated with App Control
Battery: Removable Internal Lithium-ion 48V 15AH (720Wh), UL 2849 Compliant
Sensors: Speed Sensor, Brake Sensor
Charger: 54.6V 3.0A, US Standard 3A Fast Charger, 4-5 Hour Charging Time
Lights: Included
Brakes: F & R Hydraulic Disc Brakes, 160mm Rotors
Drivetrain
Bottom Bracket: Square Taper, Sealed, Speed Sensor
Pedals: 9/16"
Rear Derailleur: Shimano 7-Speed
Cassette: Shimano 7-Speed
Shift Lever: 7-Speed Trigger
